How to Choose the Right Roof Panel for a Steel Building?
Choosing the right roof panel is an important part of designing a steel structure building. The roof system not only protects the building from rain, wind, and sunlight, but also affects thermal insulation, durability, maintenance, and overall project cost.
For warehouses, workshops, factories, and other steel buildings, the most suitable roof panel depends on the local climate, building use, insulation requirements, budget, and expected service life.
1. Consider the Local Climate
The first factor to consider is the climate where the building will be constructed.
Buildings in areas with heavy rainfall need a reliable waterproof roof system and appropriate roof slope. In regions with strong winds, the roof panels and their connections need to be properly designed to resist wind loads.
For cold climates, thermal insulation is usually an important consideration. In hot climates, the roof system should help reduce heat transfer into the building.
Coastal areas may also require additional attention to corrosion resistance because salt and moisture can accelerate the corrosion of steel components.
2. Choose Between Single-Layer and Sandwich Panels
Steel roof panels can generally be divided into single-layer metal panels and insulated sandwich panels.
Single-Layer Metal Roof Panels
Single-layer panels are relatively simple and economical. They are commonly used for warehouses, storage buildings, agricultural structures, and other applications where high thermal insulation is not required.
However, a single-layer metal roof provides limited thermal insulation. Additional insulation materials may be required if the building has specific temperature-control requirements.
Insulated Sandwich Roof Panels

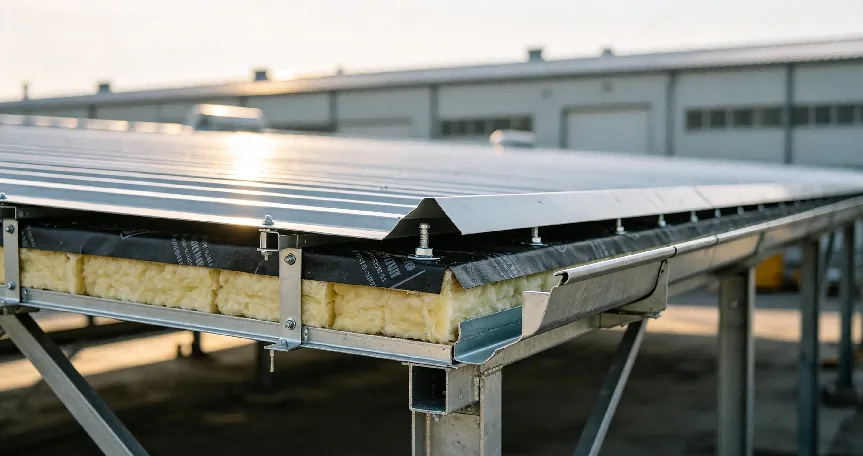

Sandwich panels consist of two metal sheets with an insulation core between them. Common insulation cores include EPS, polyurethane (PU), and rock wool.
They can provide better thermal insulation than single-layer metal panels and are widely used for factories, workshops, commercial buildings, and other buildings where indoor temperature control is important.
3. Consider the Insulation Requirement
The right insulation level depends on the intended use of the building.
For a basic storage warehouse, high-performance insulation may not always be necessary. However, factories, food-processing facilities, cold-storage buildings, and temperature-sensitive facilities may require a more carefully designed roof insulation system.
When comparing sandwich panels, buyers should consider not only the panel thickness but also the insulation core, thermal performance, fire requirements, and local building regulations.
4. Check Fire Safety Requirements
Fire performance is another important factor when selecting roof panels.
Different insulation materials have different fire characteristics. Rock wool panels are often selected for projects where higher fire resistance is required.
However, fire performance should always be evaluated according to the complete roof system and the applicable local building codes rather than choosing a panel based on insulation material alone.
5. Consider Roof Panel Thickness
Roof panel thickness affects factors such as strength, thermal insulation, and overall weight.
Common panel thicknesses may vary depending on the application and manufacturer. A thicker panel does not automatically mean it is the best choice. The appropriate thickness should be determined according to the building's structural design, climate, insulation requirements, and project specifications.
6. Pay Attention to Coating and Corrosion Resistance
The metal surface of a roof panel is exposed to outdoor weather conditions throughout its service life.
The type and quality of the coating can therefore affect durability and appearance. For projects in humid or coastal environments, corrosion resistance should receive particular attention.
Buyers should ask suppliers for detailed information about the steel substrate, coating specification, panel thickness, and applicable quality standards.
7. Consider Roof Shape and Drainage
The roof panel should also be compatible with the building's roof design.
A suitable roof slope helps rainwater drain efficiently and reduces the risk of water accumulation. Roof design should also take into account gutters, downpipes, flashing, ridge caps, skylights, and other accessories.
Poorly designed drainage can lead to water leakage and premature deterioration of the roof system, even when good-quality panels are used.
8. Compare Total Cost, Not Just Panel Price
When comparing different roof panels, buyers should look beyond the price per square meter.
The total cost can include:
Roof panels
Insulation
Flashing and trims
Fasteners
Gutters and drainage
Transportation
Installation
Long-term maintenance
A lower-cost panel may not always be the most economical option if it requires additional insulation or more frequent maintenance.
What Roof Panel Should You Choose?
There is no single roof panel that is suitable for every steel building.
For a basic warehouse in a mild climate, a single-layer metal roof may be sufficient. For buildings requiring better thermal insulation, sandwich panels can provide a more suitable solution. Where fire resistance is a major requirement, rock wool sandwich panels may be considered.
The final choice should be based on the building's location, application, climate, structural requirements, insulation needs, fire regulations, and budget.
Before purchasing steel structure buildings or roofing panels, it is advisable to provide information such as the project location, building dimensions, intended use, design plans, thermal insulation requirements, and local building standards. Providing these details enables suppliers to recommend the most suitable steel structure and roofing systems for the specific project, rather than simply offering generic, off-the-shelf materials.
